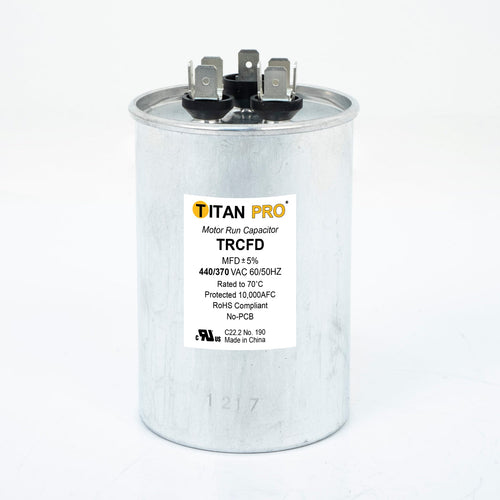

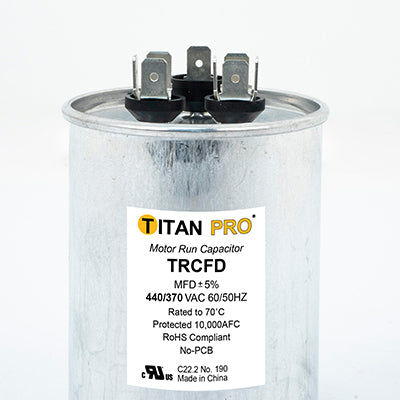

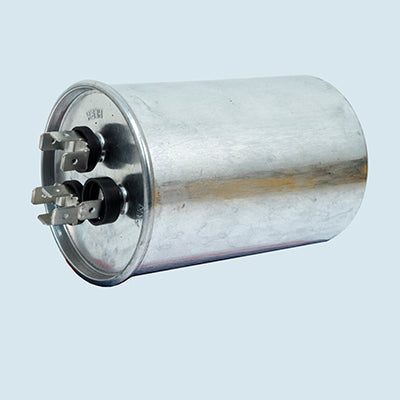

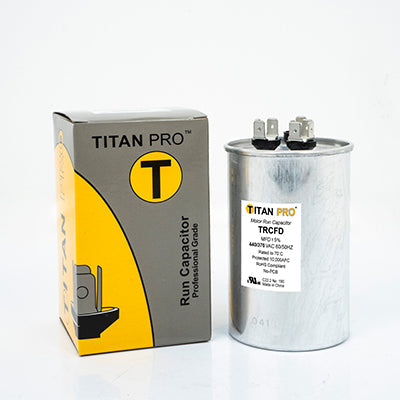

Titan Pro Run Capacitor 45+5 MFD 440/370 Volt Round
Item Details
Applications/Features
Not all capacitors are built the same. Take it to the PRO level. At 60,000 hours of operational life, Titan PRO™ Professional Grade Motor Run Capacitors get the job done by outperforming standard motor run capacitors of similar value by 83%!
RELIABLE
60,000 hours operational life
FLEXIBLE
Titan PRO™ 440/370 volt design reduces inventory
Titan PRO™ 370 volt offers best in class value
COMPLIANT
Built to the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
TESTED
100% electrical testing
REINFORCED
Heavy-edged metalized polypropylene film is used for the dielectric
Proprietary bio-degradable oil
Second generation anti-explosion safety switch
Item Specifications
| Capacitor Voltage | 440/370 |
|---|---|
| Run MFD | 45+5 |
| Height (In) | 3.74 |
| Capacitor Shape | Round |
| Brand | Titan Pro |
| Country of Origin | CHINA |
| Diameter (In.) | 2.5 |
| Hertz | 50/60 |
| Material | Aluminum |
| Oil Type | Soybean Based |
| Operating Temperature Range | -40 to 70 |
| Terminals | Standard blade terminals |
| Tolerance | +/- 5% |
| UPC | 840899104645 |
| Voltage | 440/370 |
